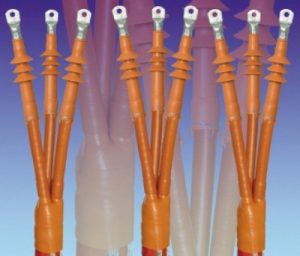

Heatshrink Terminations up to 36 kV
Universal Selection Procedure
• Simplifield selection table allows quick selection based on conductor cross section and voltage class for either polymeric or MIND paper insulated cables (For MI draining oil cables, contact your local representative)
• Simple modification codes permit easy specification of optional accessory kits
• Enhanced range-taking ability means that one kit fits more conductor sizes, reducing stocking requirements
• Unlimited shelf life allows stocking of economic quantities without product spoilage
Simplifield Cable Preparation
• Improved treatment of screen cut back is compatible with all state of the art screen removal techniques
• No tapering of insulation required
• No polishing of polymeric insulation surface
• No special preparation of sectored, or eccentric conductors, or of cable that is curved after unreeling from the cable drum
• Cable preparation steps are similar to those for Raychem joints
Simplified Installation
• Components are lightweight and non-shattering
• Clear instruction sheets
• Common installation procedure for polymeric and MIND paper cables
• Factory engineered kit permits rapid on-site installation
• No mechanical stress at insulation screen cutback
• Termination accommodates same bending radius as cable
• Visual confirmation of correct assembly sequence possible after installation
• Rain skirts can be installed to allow either top or bottom feed
• No soldering of earthing accessories required
Outstanding Long-Term Reliability
• Fully sealed against water ingress from the environment or from within the conductor strands
• Polymeric materials load cycle with the cable without mechanically stressing termination components and sealants
• Unsurpassed performance in polluted environments, proven over three decades.
