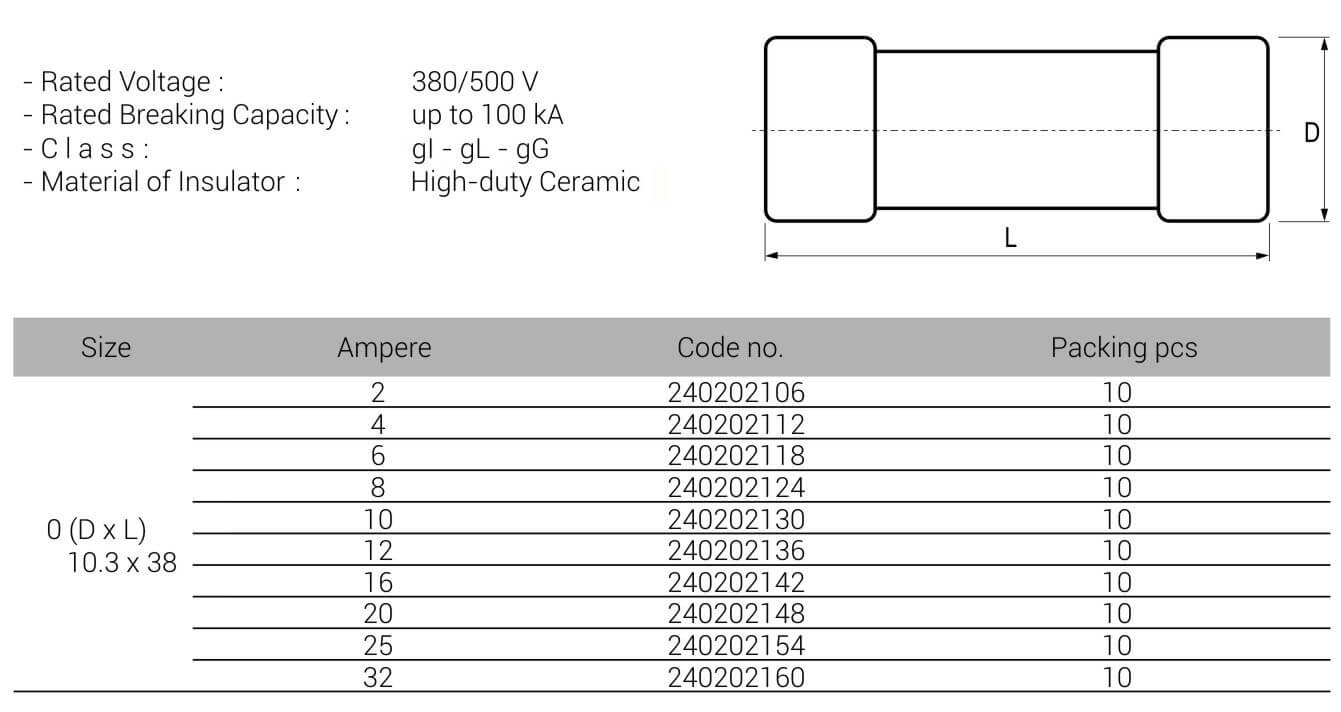

Cylindrical Fuse
Variable cross-section fuse element made from pure metal sealed in cartridge made from high-duty ceramic or epoxy glass.
Overview
Design Features
Variable cross-section fuse element made from pure metal sealedin cartridge made from high-duty ceramic or epoxy glass. Fuse tube filled with chemically treated high-purity quartz sand asarc-extinguishing medium. Dot-welding of fuse element ends to thecaps ensures reliable electric connection; Striker may be attachedto the fuse link to provide immediate activation of micro switch togive various signals or cut the circuit automatically.
Applications
Protection against overload and short circuit in electric lines(Type gG).Rated voltage up to 660 V;
Rated current up to 32 A; workingfrequency 50 Hz AC; Rated breaking capacity up to 100 KA.Compliant with GB13539 and IEC269.
